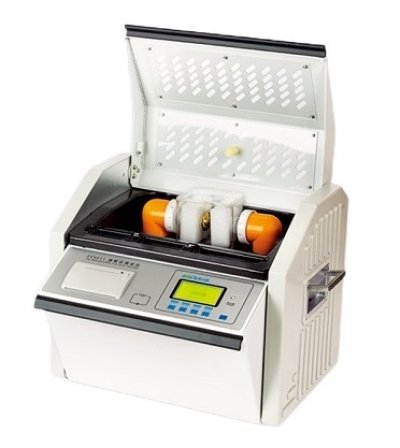

JY6611 Insulating Oil Breakdown Voltage(BDV) Tester
SKU : KPI JY6611
ขายแล้ว 0 ชิ้น
คำอธิบายสินค้าแบบย่อ
Electromagnetic compatibility concept(EMC)
Use Electronic Boost Method with Stable output voltage
IEC ASTM VDE standards optional
High test precision
Product description: 1. Accurate and good waveform output voltage 2. High testing precision 3. High strength oil testing cup 4. Complete protection system 6. Electromagnetic compatibility
Model
JY6611 Oil Breakdown Voltage (BDV) tester
Output Voltage Range 0~80 kV / 100 kV
Voltage Resolution 0.1 kV
Measurement Accuracy ±2% of reading ±0.2 kV
Voltage Ramp Rate 1.0 /2.0 /3.0 kV/s (selectable)
Trip Time at Breakdown, ms ≤ 1ms
Test Repetitions 1～6 (selectable)
Applicable StandardIEC 60156 / ASTM D877 / ASTM D1816 / VDE0370
Result Storage Capacity30 groups
Oil Cup Capacity 400ml / 200ml
Electrode Gap 2.5 mm (adjustable)
Operation Temperature0℃~40℃
Operating Relative Humidity≤ 80%RH, No Condensation
Power Supply RequirementAC220V±10%, 50Hz±1%
Dimensions / Weight
Length 385 mm Width 300 mm Height 360 mm / 22kgs
